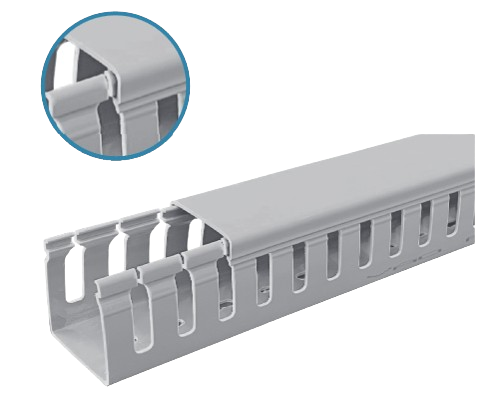

About Wiring Ducts ( PVC Channel )

Wiring ducts also known as PVC Channels are rigid trays typically used as raceways for cables and wires within electrical enclosures. They are also used in commercial and industrial buildings to provide a convenient way to protect, organize and route wiring circuits. Wiring ducts are often used as basic component of a cable management system. For more than 5 years in development, SUPA FLEX PVT LTD has been the world leader in the design and manufacture of wiring duct in a wide selection of sizes, styles, colors and materials. SUPA FLEX Wiring Ducts are manufactured from specially compounded high-impact rigid polyvinyl chloride. They are made with Flame retardant UL V0 material with ROHS & FRLS Certifications. Available in Narrow Slot, Wide Slot & Un-slotted (Solid Wall). Narrow slot is suitable for small- diameter wires whereas Wide slot is suitable for large-diameter wires.
Our Wiring Ducts are available in two types of Locking.
Type A Locking – Snap fit Cover
Type B Locking – Non Slip Cover

Available in Colors

  • Gray
  • Black
  • Blue

Properties

  • Material : Right Polyvinylchloride
  • Tensile Strength : 320 kgcm
  • Temperature Range : -30°C- 60°C
  • Flammability : UL94V-0 Raw Material
  • Mounting Hole Pattern as per DIN Standard
  • Non Slip Cover
  • Double Restoration Slot
  • Wide & Narrow Slot
  • Bur Free Edges
  • Type A & Type B Locking
  • No Brittle

TYPE-A
S.No. Size HxW(mm) Part Number Description Packing Qty.(Mtr.)
1 15x15 SFWDN15X15LG1 Slotted, 15mm Height, 15mm Width, L.Grey 1meter 250
2 SFWDN15X15LG2 Slotted, 15mm Height, 15mm Width, L.Grey 2meter
3 SFWDW15X15LG1 Unslotted, 15mm Height, 15mm Width, L.Grey 1meter
4 SFWDW15X15LG2 Unslotted, 15mm Height, 15mm Width, L.Grey 2meter
5 SFWDS15X15LG1 Unslotted, 15mm Height, 15mm Width, L.Grey 1meter
6 SFWDS15X15LG2 Unslotted, 15mm Height, 15mm Width, L.Grey 2meter
7 25x25 SFWDN25X25LG1 Slotted, 25mm Height, 25mm Width, L.Grey 1meter 120
8 SFWDN25X25LG2 Slotted, 25mm Height, 25mm Width, L.Grey 2meter
9 SFWDW25X25LG1 Slotted, 25mm Height, 25mm Width, L.Grey 1meter
10 SFWDW25X25LG2 Slotted, 25mm Height, 25mm Width, L.Grey 2meter
11 SFWDS25X25LG1 Unslotted, 25mm Height, 25mm Width, L.Grey 1meter
12 SFWDS25X25LG2 Unslotted, 25mm Height, 25mm Width, L.Grey 2meter
13 35x25 SFWDN35X25LG1 Slotted, 35mm Height, 25mm Width, L.Grey 1meter 120
14 SFWDN35X25LG2 Slotted, 35mm Height, 25mm Width, L.Grey 2meter
15 SFWDW35X25LG1 Unslotted, 35mm Height, 25mm Width, L.Grey 1meter
16 SFWDW35X25LG2 Unslotted, 35mm Height, 25mm Width, L.Grey 2meter
17 SFWDS35X25LG1 Unslotted, 35mm Height, 25mm Width, L.Grey 1meter
18 SFWDS35X25LG2 Unslotted, 35mm Height, 25mm Width, L.Grey 2meter
19 40x30 SFWDN40X30LG1 Slotted, 40mm Height, 30mm Width, L.Grey 1meter 120
20 SFWDN40X30LG2 Slotted, 40mm Height, 30mm Width, L.Grey 2meter
21 SFWDW40X30LG1 Slotted, 40mm Height, 30mm Width, L.Grey 1meter
22 SFWDW40X30LG2 Slotted, 40mm Height, 30mm Width, L.Grey 2meter
23 SFWDS40X30LG1 Unslotted, 40mm Height, 30mm Width, L.Grey 1meter
24 SFWDS40X30LG2 Unslotted, 40mm Height, 30mm Width, L.Grey 2meter
25 45x25 SFWDN45X25LG1 Slotted, 45mm Height, 25mm Width, L.Grey 1meter 120
26 SFWDN45X25LG2 Slotted, 45mm Height, 25mm Width, L.Grey 2meter
27 SFWDW45X25LG1 Unslotted, 45mm Height, 25mm Width, L.Grey 1meter
28 SFWDW45X25LG2 Unslotted, 45mm Height, 25mm Width, L.Grey 2meter
29 SFWDS45X25LG1 Unslotted, 45mm Height, 25mm Width, L.Grey 1meter
30 SFWDS45X25LG2 Unslotted, 45mm Height, 25mm Width, L.Grey 2meter
31 45x45 SFWDN45X45LG1 Slotted, 45mm Height, 45mm Width, L.Grey 1meter 70
32 SFWDN45X45LG2 Slotted, 45mm Height, 45mm Width, L.Grey 2meter
33 SFWDW45X45LG1 Slotted, 45mm Height, 45mm Width, L.Grey 1meter
34 SFWDW45X45LG2 Slotted, 45mm Height, 45mm Width, L.Grey 2meter
35 SFWDS45X45LG1 Unslotted, 45mm Height, 45mm Width, L.Grey 1meter
36 SFWDS45X45LG2 Unslotted, 45mm Height, 45mm Width, L.Grey 2meter
37 45x60 SFWDN45X60LG1 Slotted, 45mm Height, 60mm Width, L.Grey 1meter 40
38 SFWDN45X60LG2 Slotted, 45mm Height, 60mm Width, L.Grey 2meter
39 SFWDW45X60LG1 Unslotted, 45mm Height, 60mm Width, L.Grey 1meter
40 SFWDW45X60LG2 Unslotted, 45mm Height, 60mm Width, L.Grey 2meter
41 SFWDS45X60LG1 Unslotted, 45mm Height, 60mm Width, L.Grey 1meter
42 SFWDS45X60LG2 Unslotted, 45mm Height, 60mm Width, L.Grey 2meter
43 60x25 SFWDN60X25LG1 Slotted, 60mm Height, 25mm Width, L.Grey 1meter 90
44 SFWDN60X25LG2 Slotted, 60mm Height, 25mm Width, L.Grey 2meter
45 SFWDW60X25LG1 Slotted, 60mm Height, 25mm Width, L.Grey 1meter
46 SFWDW60X25LG2 Slotted, 60mm Height, 25mm Width, L.Grey 2meter
47 SFWDS60X25LG1 Unslotted, 60mm Height, 25mm Width, L.Grey 1meter
48 SFWDS60X25LG2 Unslotted, 60mm Height, 25mm Width, L.Grey 2meter
49 60x40 SFWDN60X40LG1 Slotted, 60mm Height, 40mm Width, L.Grey 1meter 50
50 SFWDN60X40LG2 Slotted, 60mm Height, 40mm Width, L.Grey 2meter
51 SFWDW60X40LG1 Unslotted, 60mm Height, 40mm Width, L.Grey 1meter
52 SFWDW60X40LG2 Unslotted, 60mm Height, 40mm Width, L.Grey 2meter
53 SFWDS60X40LG1 Unslotted, 60mm Height, 40mm Width, L.Grey 1meter
54 SFWDS60X40LG2 Unslotted, 60mm Height, 40mm Width, L.Grey 2meter
55 60x45 SFWDN60X45LG1 Slotted, 60mm Height, 45mm Width, L.Grey 1meter 50
56 SFWDN60X45LG2 Slotted, 60mm Height, 45mm Width, L.Grey 2meter
57 SFWDW60X45LG1 Slotted, 60mm Height, 45mm Width, L.Grey 1meter
58 SFWDW60X45LG2 Slotted, 60mm Height, 45mm Width, L.Grey 2meter
59 SFWDS60X45LG1 Unslotted, 60mm Height, 45mm Width, L.Grey 1meter
60 SFWDS60X45LG2 Unslotted, 60mm Height, 45mm Width, L.Grey 2meter
61 60x60 SFWDN60X60LG1 Slotted, 60mm Height, 60mm Width, L.Grey 1meter 40
62 SFWDN60X60LG2 Slotted, 60mm Height, 60mm Width, L.Grey 2meter
63 SFWDW60X60LG1 Unslotted, 60mm Height, 60mm Width, L.Grey 1meter
64 SFWDW60X60LG2 Unslotted, 60mm Height, 60mm Width, L.Grey 2meter
65 SFWDS60X60LG1 Unslotted, 60mm Height, 60mm Width, L.Grey 1meter
66 SFWDS60X60LG2 Unslotted, 60mm Height, 60mm Width, L.Grey 2meter
67 75x25 SFWDN75X25LG1 Slotted, 75mm Height, 25mm Width, L.Grey 1meter 50
68 SFWDN75X25LG2 Slotted, 75mm Height, 25mm Width, L.Grey 2meter
69 SFWDW75X25LG1 Slotted, 75mm Height, 25mm Width, L.Grey 1meter
70 SFWDW75X25LG2 Slotted, 75mm Height, 25mm Width, L.Grey 2meter
71 SFWDS75X25LG1 Unslotted, 75mm Height, 25mm Width, L.Grey 1meter
72 SFWDS75X25LG2 Unslotted, 75mm Height, 25mm Width, L.Grey 2meter
73 75x45 SFWDN75X45LG1 Slotted, 75mm Height, 45mm Width, L.Grey 1meter 44
74 SFWDN75X45LG2 Slotted, 75mm Height, 45mm Width, L.Grey 2meter
75 SFWDW75X45LG1 Unslotted, 75mm Height, 45mm Width, L.Grey 1meter
76 SFWDW75X45LG2 Unslotted, 75mm Height, 45mm Width, L.Grey 2meter
77 SFWDS75X45LG1 Unslotted, 75mm Height, 45mm Width, L.Grey 1meter
78 SFWDS75X45LG2 Unslotted, 75mm Height, 45mm Width, L.Grey 2meter
79 75x60 SFWDN75X60LG1 Slotted, 75mm Height, 60mm Width, L.Grey 1meter 38
80 SFWDN75X60LG2 Slotted, 75mm Height, 60mm Width, L.Grey 2meter
81 SFWDW75X60LG1 Slotted, 75mm Height, 60mm Width, L.Grey 1meter
82 SFWDW75X60LG2 Slotted, 75mm Height, 60mm Width, L.Grey 2meter
83 SFWDS75X60LG1 Unslotted, 75mm Height, 60mm Width, L.Grey 1meter
84 SFWDS75X60LG2 Unslotted, 75mm Height, 60mm Width, L.Grey 2meter
85 75x80 SFWDN75X80LG1 Slotted, 75mm Height, 80mm Width, L.Grey 1meter 24
86 SFWDN75X80LG2 Slotted, 75mm Height, 80mm Width, L.Grey 2meter
87 SFWDW75X80LG1 Unslotted, 75mm Height, 80mm Width, L.Grey 1meter
88 SFWDW75X80LG2 Unslotted, 75mm Height, 80mm Width, L.Grey 2meter
89 SFWDS75X80LG1 Unslotted, 75mm Height, 80mm Width, L.Grey 1meter
90 SFWDS75X80LG2 Unslotted, 75mm Height, 80mm Width, L.Grey 2meter
91 80x25 SFWDN80X25LG1 Slotted, 80mm Height, 25mm Width, L.Grey 1meter 50
92 SFWDN80X25LG2 Slotted, 80mm Height, 25mm Width, L.Grey 2meter
93 SFWDW80X25LG1 Slotted, 80mm Height, 25mm Width, L.Grey 1meter
94 SFWDW80X25LG2 Slotted, 80mm Height, 25mm Width, L.Grey 2meter
95 SFWDS80X25LG1 Unslotted, 80mm Height, 25mm Width, L.Grey 1meter
96 SFWDS80X25LG2 Unslotted, 80mm Height, 25mm Width, L.Grey 2meter
97 80x45 SFWDN80X45LG1 Slotted, 80mm Height, 45mm Width, L.Grey 1meter 44
98 SFWDN80X45LG2 Slotted, 80mm Height, 45mm Width, L.Grey 2meter
99 SFWDW80X45LG1 Unslotted, 80mm Height, 45mm Width, L.Grey 1meter
100 SFWDW80X45LG2 Unslotted, 80mm Height, 45mm Width, L.Grey 2meter
101 SFWDS80X45LG1 Unslotted, 80mm Height, 45mm Width, L.Grey 1meter
102 SFWDS80X45LG2 Unslotted, 80mm Height, 45mm Width, L.Grey 2meter
103 80x60 SFWDN80X60LG1 Slotted, 80mm Height, 60mm Width, L.Grey 1meter 38
104 SFWDN80X60LG2 Slotted, 80mm Height, 60mm Width, L.Grey 2meter
105 SFWDW80X60LG1 Slotted, 80mm Height, 60mm Width, L.Grey 1meter
106 SFWDW80X60LG2 Slotted, 80mm Height, 60mm Width, L.Grey 2meter
107 SFWDS80X60LG1 Unslotted, 80mm Height, 60mm Width, L.Grey 1meter
108 SFWDS80X60LG2 Unslotted, 80mm Height, 60mm Width, L.Grey 2meter
109 80x80 SFWDN80X80LG1 Slotted, 80mm Height, 80mm Width, L.Grey 1meter 24
110 SFWDN80X80LG2 Slotted, 80mm Height, 80mm Width, L.Grey 2meter
111 SFWDW80X80LG1 Unslotted, 80mm Height, 80mm Width, L.Grey 1meter
112 SFWDW80X80LG2 Unslotted, 80mm Height, 80mm Width, L.Grey 2meter
113 SFWDS80X80LG1 Unslotted, 80mm Height, 80mm Width, L.Grey 1meter
114 SFWDS80X80LG2 Unslotted, 80mm Height, 80mm Width, L.Grey 2meter
115 100x100 SFWDN100X100LG1 Slotted, 100mm Height, 100mm Width, L.Grey 1meter 18
116 SFWDN100X100LG2 Slotted, 100mm Height, 100mm Width, L.Grey 2meter
117 SFWDW100X100LG1 Slotted, 100mm Height, 100mm Width, L.Grey 1meter
118 SFWDW100X100LG2 Slotted, 100mm Height, 100mm Width, L.Grey 2meter
119 SFWDS100X100LG1 Unslotted, 100mm Height, 100mm Width, L.Grey 1meter
120 SFWDS100X100LG2 Unslotted, 100mm Height, 100mm Width, L.Grey 2meter

TYPE-B
S.N Size HxW(mm) Part Number Description Packing Qty.(Mtr.)
1 25x25 SFWDN25X25LG1 Slotted, 25mm Height, 25mm Width, L.Grey 1meter 120
2 SFWDN25X25LG2 Slotted, 25mm Height, 25mm Width, L.Grey 2meter
3 SFWDN25X25LG1 Unslotted, 25mm Height, 25mm Width, L.Grey 1meter
4 SFWDN25X25LG2 Unslotted, 25mm Height, 25mm Width, L.Grey 2meter
5 40x25 SFWDN40X25LG1 Slotted, 40mm Height, 25mm Width, L.Grey 1meter 120
6 SFWDN40X25LG2 Slotted, 40mm Height, 25mm Width, L.Grey 2meter
7 SFWDS40X25LG1 Unslotted, 40mm Height, 25mm Width, L.Grey 1meter
8 SFWDS40X25LG2 Unslotted, 40mm Height, 25mm Width, L.Grey 2meter
5 40x40 SFWDN40X40LG1 Slotted, 40mm Height, 40mm Width, L.Grey 1meter 70
10 SFWDN40X40LG2 Slotted, 40mm Height, 40mm Width, L.Grey 2meter
11 SFWDS40X40LG1 Unslotted, 40mm Height, 40mm Width, L.Grey 1meter
12 SFWDS40X40LG2 Unslotted, 40mm Height, 40mm Width, L.Grey 2meter
13 40x60 SFWDN25X25LG1 Slotted, 25mm Height, 25mm Width, L.Grey 1meter 50
14 SFWDN25X25LG2 Slotted, 25mm Height, 25mm Width, L.Grey 2meter
15 SFWDS25X25LG1 Unslotted, 25mm Height, 25mm Width, L.Grey 1meter
16 SFWDS25X25LG2 Unslotted, 25mm Height, 25mm Width, L.Grey 2meter
17 40x25 SFWDN45X25LG1 Slotted, 45mm Height, 25mm Width, L.Grey 1meter 120
18 SFWDN45X25LG2 Slotted, 45mm Height, 25mm Width, L.Grey 2meter
19 SFWDS45X25LG1 Unslotted, 45mm Height, 25mm Width, L.Grey 1meter
20 SFWDS45X25LG2 Unslotted, 45mm Height, 25mm Width, L.Grey 2meter
21 60x25 SFWDN60X25LG1 Slotted, 60mm Height, 25mm Width, L.Grey 1meter 90
22 SFWDN60X25LG2 Slotted, 60mm Height, 25mm Width, L.Grey 2meter
23 SFWDS60X25LG1 Unslotted, 60mm Height, 25mm Width, L.Grey 1meter
24 SFWDS60X25LG2 Unslotted, 60mm Height, 25mm Width, L.Grey 2meter
25 60x40 SFWDN60X40LG1 Slotted, 60mm Height, 40mm Width, L.Grey 1meter 50
26 SFWDN60X40LG2 Slotted, 60mm Height, 40mm Width, L.Grey 2meter
27 SFWDS60X40LG1 Unslotted, 60mm Height, 40mm Width, L.Grey 1meter
28 SFWDS60X40LG2 Unslotted, 60mm Height, 40mm Width, L.Grey 2meter
29 60X45 SFWDN60X45LG1 Slotted, 60mm Height, 45mm Width, L.Grey 1meter 50
30 SFWDN60X45LG2 Slotted, 60mm Height, 45mm Width, L.Grey 2meter
31 SFWDS60X45LG1 Unslotted, 60mm Height, 45mm Width, L.Grey 1meter
32 SFWDS60X45LG2 Unslotted, 60mm Height, 45mm Width, L.Grey 2meter
33 45X45 SFWDN45X45LG1 Slotted, 45mm Height, 45mm Width, L.Grey 1meter 70
34 SFWDN45X45LG2 Slotted, 45mm Height, 45mm Width, L.Grey 2meter
35 SFWDS45X45LG1 Unslotted, 45mm Height, 45mm Width, L.Grey 1meter
36 SFWDS45X45LG2 Unslotted, 45mm Height, 45mm Width, L.Grey 2meter
37 80X25 SFWDN80X25LG1 Slotted, 80mm Height, 25mm Width, L.Grey 1meter 50
38 SFWDN80X25LG2 Slotted, 80mm Height, 25mm Width, L.Grey 2meter
39 SFWDS80X25LG1 Unslotted, 80mm Height, 25mm Width, L.Grey 1meter
40 SFWDS80X25LG2 Unslotted, 80mm Height, 25mm Width, L.Grey 2meter
41 80X40 SFWDN80X40LG1 Slotted, 80mm Height, 40mm Width, L.Grey 1meter 44
42 SFWDN80X40LG2 Slotted, 80mm Height, 40mm Width, L.Grey 2meter
43 SFWDS80X40LG1 Unslotted, 80mm Height, 40mm Width, L.Grey 1meter
44 SFWDS80X40LG2 Unslotted, 80mm Height, 40mm Width, L.Grey 2meter
45 80X60 SFWDN80X60LG1 Slotted, 80mm Height, 60mm Width, L.Grey 1meter 38
46 SFWDN80X60LG2 Slotted, 80mm Height, 60mm Width, L.Grey 2meter
47 SFWDS80X60LG1 Unslotted, 80mm Height, 60mm Width, L.Grey 1meter
48 SFWDS80X60LG2 Unslotted, 80mm Height, 60mm Width, L.Grey 2meter
49 60X60 SFWDN60X60LG1 Slotted, 60mm Height, 60mm Width, L.Grey 1meter 40
50 SFWDN60X60LG2 Slotted, 60mm Height, 60mm Width, L.Grey 2meter
51 SFWDS60X60LG1 Unslotted, 60mm Height, 60mm Width, L.Grey 1meter
52 SFWDS60X60LG2 Unslotted, 60mm Height, 60mm Width, L.Grey 2meter
53 80X80 SFWDN80X80LG1 Slotted, 80mm Height, 80mm Width, L.Grey 1meter 24
54 SFWDN80X80LG2 Slotted, 80mm Height, 80mm Width, L.Grey 2meter
55 SFWDS80X80LG1 Unslotted, 80mm Height, 80mm Width, L.Grey 1meter
56 SFWDS80X80LG2 Unslotted, 80mm Height, 80mm Width, L.Grey 2meter
57 100X60 SFWDN100X60LG1 Slotted, 100mm Height, 60mm Width, L.Grey 1meter 24
58 SFWDN100X60LG2 Slotted, 100mm Height, 60mm Width, L.Grey 2meter
59 SFWDS100X60LG1 Unslotted, 100mm Height, 60mm Width, L.Grey 1meter
60 SFWDS100X60LG2 Unslotted, 100mm Height, 60mm Width, L.Grey 2meter
61 100X25 SFWDN100X25LG1 Slotted, 100mm Height, 25mm Width, L.Grey 1meter 40
62 SFWDN100X25LG2 Slotted, 100mm Height, 25mm Width, L.Grey 2meter
63 SFWDS100X25LG1 Unslotted, 100mm Height, 25mm Width, L.Grey 1meter
64 SFWDS100X25LG2 Unslotted, 100mm Height, 25mm Width, L.Grey 2meter
65 100X40 SFWDN100X40LG1 Slotted, 100mm Height, 40mm Width, L.Grey 1meter 32
66 SFWDN100X40LG2 Slotted, 100mm Height, 40mm Width, L.Grey 2meter
67 SFWDS100X40LG1 Unslotted, 100mm Height, 40mm Width, L.Grey 1meter
68 SFWDS100X40LG2 Unslotted, 100mm Height, 40mm Width, L.Grey 2meter
69 100X80 SFWDN100X80LG1 Slotted, 100mm Height, 80mm Width, L.Grey 1meter 20
70 SFWDN100X80LG2 Slotted, 100mm Height, 80mm Width, L.Grey 2meter
71 SFWDS100X80LG1 Unslotted, 100mm Height, 80mm Width, L.Grey 1meter
72 SFWDS100X80LG2 Unslotted, 100mm Height, 80mm Width, L.Grey 2meter
73 100X100 SFWDN100X100LG1 Slotted, 100mm Height, 100mm Width, L.Grey 1meter 18
74 SFWDN100X100LG2 Slotted, 100mm Height, 100mm Width, L.Grey 2meter
75 SFWDS100X100LG1 Unslotted, 100mm Height, 100mm Width, L.Grey 1meter
76 SFWDS100X100LG2 Unslotted, 100mm Height, 100mm Width, L.Grey 2meter

Accessories

Image Name

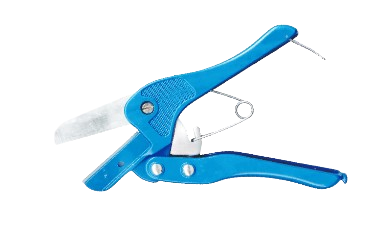

Cutting Tool

Approvals
